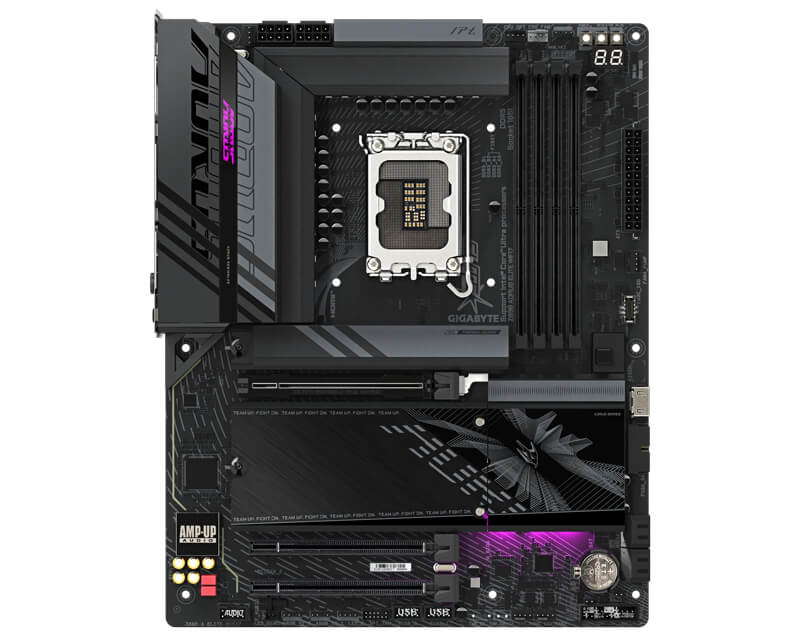

GIGABYTE Z890 A ELITE WIFI7 rev. 1.x
20 people are viewing this product right now
373 $
Shipping calculated at checkout.
Estimated delivery:4 days
Guarantee Safe and Secure Payment Checkout
Osnovne karakteristike
| Procesorsko ležište (socket) | Intel 1851 |
| Čipset | Intel Z890 |
Memorija
| Tip memorije | DDR5 |
| Memorijski slotovi | 4 |
| Podržane memorije | 7.200MT/s (O.C.), 7.000MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 5.600MT/s, 7.600MT/s (O.C.), 7.400MT/s (O.C.), 7.800MT/s (O.C.), 8.000MT/S (O.C.), 7.950MT/s (O.C), 7.900MT/s (O.C), 8.266MT/s (O.C), 8.200MT/s (O.C.), 9.200MT/s (O.C.), 8.600MT/s (O.C.), 9.066MT/s (O.C.), 8.400MT/s (O.C.), 6.000MT/s, 8.933MT/s (O.C.), 5.800MT/s, 6.400MT/s, 8.800MT/s (O.C.), 6.200MT/s |
| Maksimalna ukupna memorija | 256GB |
| Ostale osobine | Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel, Podrška za CUDIMM |
Slotovi
| PCI Express x16 slot | 1x PCI Express 5.0 (x16 mode), 2x PCI Express 4.0 (x4 mode) |
| PCI slot | 3 |
Skladišni interfejs
| SATA priključci (ukupno) | 4 |
| SATA priključci | SATA III 6Gbps |
| Broj M.2 slotova | 4 |
| Podržani M.2 formati | 1x 2280 / 2580 / 22110 / 25110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0 x4 i SATA modove), 1x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 2580 / 22110 / 25110 (podrška za PCIe 5.0 x4/x2 mod) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
Mreža
| Žična mreža (LAN) | 2.5GBase-T (Gigabit) |
| Model | Realtek |
| Wi-Fi | Da |
| Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Da |
| Bluetooth verzija | 5.4 |
Audio
| Broj kanala | 8 (7.1) |
| Model | Realtek ALC1220-VB Codec |
| Napomena | High Definition |
Priključci na zadnjem panelu
| Thunderbolt | 1x Thunderbolt 4 |
| Broj DisplayPort priključaka | 1 |
| DisplayPort priključci | 1x DisplayPort 2.1 |
| Ukupno USB priključaka | 9 |
| USB-A priključci | 2x USB 10Gbps (3.2 Gen 2), 3x USB 5Gbps (3.2 Gen 1), 4x USB 2.0 |
| RJ-45 (LAN) | 1 |
| Audio | 2x 3.5mm, 1x S/PDIF optički |
| Ostali priključci | 1x Wi-Fi Module |
Unutrašnji priključci
| Naponski priključci | 2x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector |
| USB-A | 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port |
| USB-C | 1 x podrška za 1 USB 10Gbps port |
| Audio | 1x Front panel header |
| Ostali priključci | 1 x front panel header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 4 x SATA 6Gb/s, 1 x RGB LED strip header, 1 x reset jumper, 1x TPM pin header(Support TPM 2.0), 1 x reset button, 1 x 4-pin CPU Fan conector, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1 x Power button, 4x M.2 Socket 3, 1x system fan/water cooling pump header, 1x HDMI port, 3x System Fan |
| Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
Fizičke karakteristike
| Format | ATX |
| Dimenzije | 305mm x 244mm |
