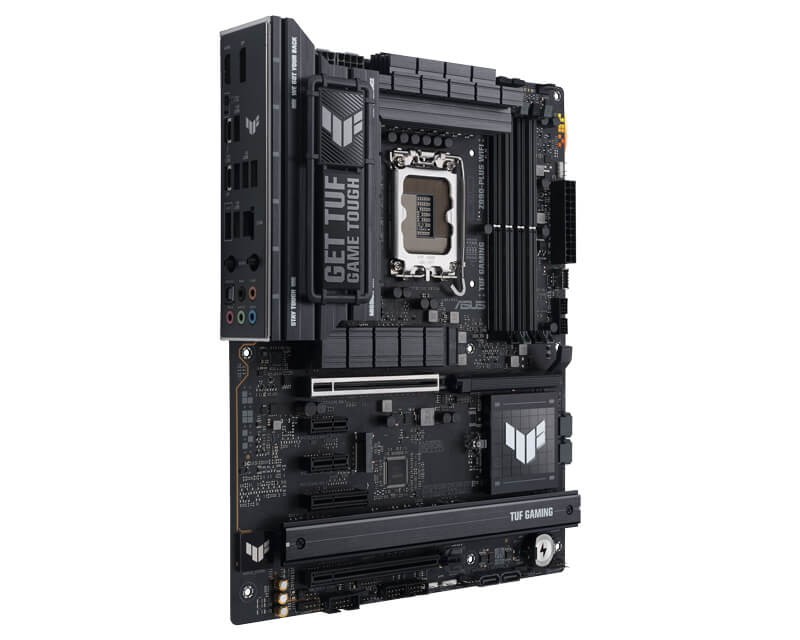

ASUS TUF GAMING Z890-PLUS WIFI
15 people are viewing this product right now
534 $
Shipping calculated at checkout.
Estimated delivery:4 days
Guarantee Safe and Secure Payment Checkout
Osnovne karakteristike
| Procesorsko ležište (socket) | Intel 1851 |
| Čipset | Intel Z890 |
Memorija
| Tip memorije | DDR5 |
| Memorijski slotovi | 4 |
| Podržane memorije | 9.066+MT/s (O.C.) |
| Maksimalna ukupna memorija | 192GB |
| Ostale osobine | Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel, ASUS Enhanced Memory Profile III (AEMP III) |
Slotovi
| PCI Express x16 slot | 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode) |
| PCI Express x4 slot | 1x PCI Express 4.0 |
| PCI Express x1 slot | 2x PCI Express 4.0 |
| PCI slot | 5 |
Skladišni interfejs
| SATA priključci (ukupno) | 4 |
| SATA priključci | SATA III 6Gbps |
| Broj M.2 slotova | 4 |
| Podržani M.2 formati | 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 4.0 x4 i SATA modove), 1x 2280 / 22110 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
Mreža
| Žična mreža (LAN) | 2.5GBase-T (Gigabit) |
| Model | Intel |
| Wi-Fi | Da |
| Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Da |
| Bluetooth verzija | 5.4 |
Audio
| Broj kanala | 8 (7.1) |
| Model | Realtek ALC1220P |
| Napomena | Audio Shielding, Audio Cover, Premium audio capacitors, Dedicated audio PCB layers, Unique de-pop circuit |
Priključci na zadnjem panelu
| Thunderbolt | 1x Thunderbolt 4 |
| Broj DisplayPort priključaka | 1 |
| DisplayPort priključci | 1x DisplayPort 1.4, Da preko USB-C, Da preko Thunderbolta |
| Broj HDMI priključaka | 1 |
| HDMI priključci | 1x HDMI 2.1 |
| Ukupno USB priključaka | 7 |
| Ukupno USB-C priključaka | 1 |
| USB-A priključci | 3x USB 5Gbps (3.2 Gen 1), 3x USB 10Gbps (3.2 Gen 2) |
| USB-C priključci | 1x USB 20Gbps (3.2 Gen 2×2) |
| RJ-45 (LAN) | 1 |
| Audio | 5x 3.5mm, 1x S/PDIF optički |
| Ostali priključci | 1x Wi-Fi Module |
Unutrašnji priključci
| Naponski priključci | 1x 8 pin 12V Power Connector, 1 x 24 pin Main Power connector |
| USB-A | 1 x podrška za 2 USB 5Gbps porta, 2 x podrška za 4 USB 2.0 porta |
| USB-C | 1 x podrška za 1 USB 20Gbps port |
| Audio | 1x Front panel header |
| Ostali priključci | 4 x SATA 6Gb/s, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin Chassis Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 1 x Thunderbolt™ (USB4®) header, 4x M.2, 1x Chassis Intrusion Header |
| Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
Fizičke karakteristike
| Format | ATX |
| Dimenzije | 305mm x 244mm |
| Pakovanje | 2 x SATA 6Gb/s kabl, 1 x ASUS Wi-Fi antena |
