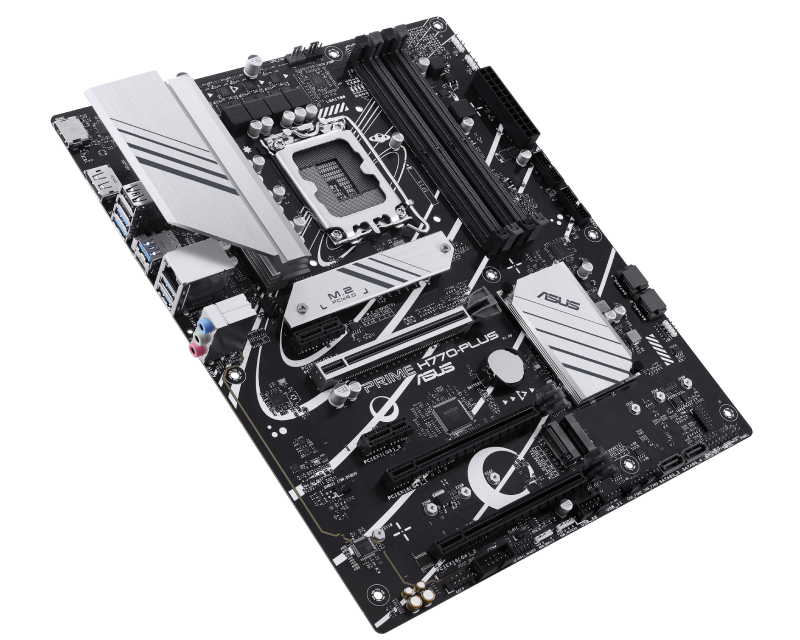

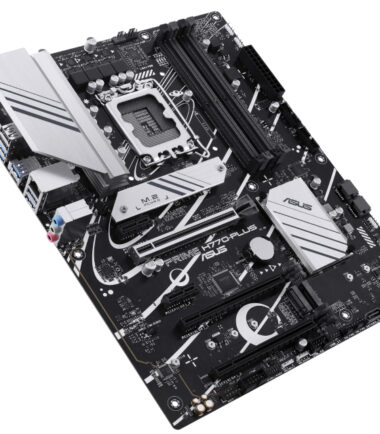

ASUS PRIME H770-PLUS matična ploča

Osnovne karakteristike
Procesorsko ležište (socket) Intel 1700
Čipset Intel H770
Memorija
Tip memorije DDR5
Memorijski slotovi 4x DDR5
Podržane memorije 6.000MHz (O.C.), 5.800MHz (O.C.), 6.200MHz (O.C.), 4.800Mhz, 5.200Mhz, 5.600MHz, 5.400MHz, 6.600MHz (O.C.), 6.800MHz (O.C.), 7.000MHz (O.C.), 6.400MHz (O.C.), 5.000Mhz, 7.200MHz+ (O.C.)
Maksimalna ukupna memorija 192GB
Ostale osobine Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, OptiMem II, Dual Channel, Podrška za Unbuffered ECC memoriju
Slotovi
PCI Express x16 slot 1x PCI Express 5.0, 2x PCI Express 4.0
PCI Express x1 slot 2x PCI Express 3.0
Skladišni interfejs
SATA priključci (ukupno) 4
SATA priključci 4x SATA 6Gbps
Ostali skladišni interfejs 3x M.2
RAID RAID 0, RAID 1, RAID 5, RAID 10
Mreža
Žična mreža (LAN) 1x Realtek 2.5Gb Ethernet
Model Realtek
Audio
Model Realtek
Napomena Audio Shielding, Dedicated audio PCB layers, Premium audio capacitors, Jack-detection, Multi-streaming, Front Panel Jack-retasking
Priključci na zadnjem panelu
DisplayPort priključci 1x DisplayPort
HDMI priključci 1
Ukupno USB priključaka 8
Ukupno USB-C priključaka 1
USB 3.2 priključci 2 (Tip A) Gen2, 1 (Tip C) Gen2, 3 x Gen1
USB 2.0 priključci 2 (Tip A)
RJ-45 (LAN) 1
Audio 3x 3.5mm
Ostali priključci 1 x Vertical M.2 slot (Key E)
Unutrašnji priključci
Naponski priključci 1 x 24 pin Main Power connector, 1 x 8-pin ATX 12V power connector
USB 3.2 2 (podrška za 4 USB 3.2 Gen 1 porta)
USB 2.0 2 (podrška za 3 USB 2.0 porta)
Ostali priključci 1 x S/PDIF Out header, 1 x 4-pin AIO Pump header, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x 4-pin CPU Fan header, 1 x 14-1 pin SPI TPM header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 4 x SATA 6Gb/s, 1 x Thunderbolt™ (USB4®) header, 1 x front panel audio header, 3x Chassis Fan connector (4-pin), 2 x Aura RGB Headers, 3 x M.2 slot
Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Ostale karakteristike
Podržane tehnologije AURA Creator, AURA Sync, DIGI+VRM, LANGuard, Overvoltage Protection, PC Cleaner, UEFI Bios, ProCool, AI Noise Cancelation, Fan Xpert 2+
Fizičke karakteristike
Format ATX
Dimenzije 305mm x 244mm
Fiksirajući otvori 9
Pakovanje Šrafovi, 2 x SATA 6Gb/s kabl
Reklamacioni period
Reklamacioni period 36 meseci
Deklaracija
EAN 4711387258347
Uvoznik
Zemlja porekla Kina
