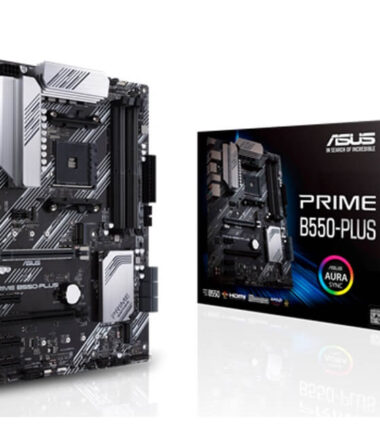

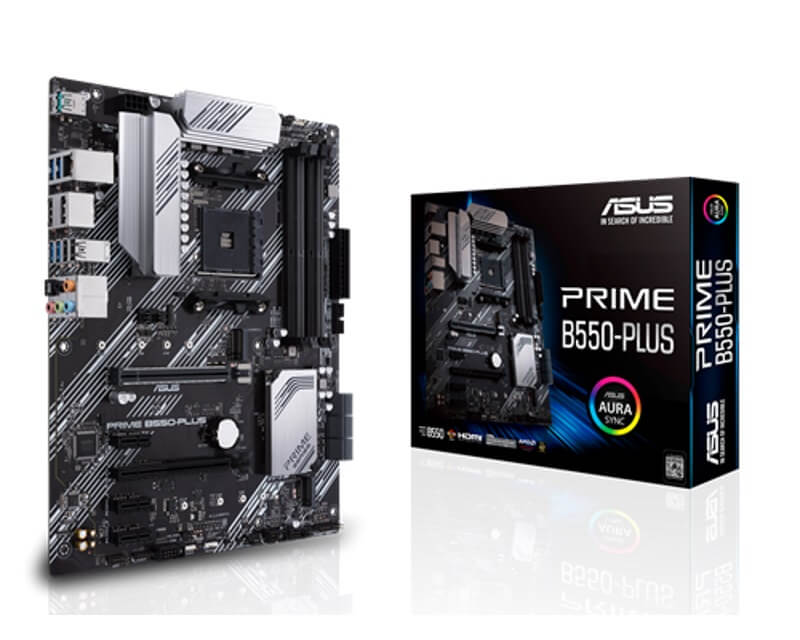

ASUS PRIME B550-PLUS

Osnovne karakteristike
Procesorsko ležište (socket) AMD AM4
Čipset AMD B550
Memorija
Tip memorije DDR4
Memorijski slotovi 4x DDR4
Podržane memorije 2.133MHz, 3.333Mhz (O.C.), 2.400MHz, 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.466Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 4.400Mhz (O.C.), 4.600Mhz (O.C.), 3.200MHz, 4.466Mhz (O.C.), 2.800MHz, 3.000MHz, 2.666MHz
Maksimalna ukupna memorija 128GB
Ostale osobine Dvokanalni (Dual-channel) režim rada memorije
Slotovi
PCI Express x16 slot 1x PCI Express 4.0/3.0
PCI Express x1 slot 3x PCI Express 3.0
Skladišni interfejs
SATA priključci (ukupno) 6
SATA priključci 6x SATA III
Ostali skladišni interfejs 2x M.2
RAID RAID 0, RAID 1, RAID 10
Mreža
Žična mreža (LAN) 1x 10/100/1.000Mbps (Gigabit ethernet)
Model Realtek
Audio
Broj kanala 8 (7.1)
Model Realtek
Napomena High Definition, Audio Shielding, PCB izolacija
Priključci na zadnjem panelu
DisplayPort priključci 1x DisplayPort 1.2
HDMI priključci 1
Ukupno USB priključaka 8
Ukupno USB-C priključaka 1
USB 3.2 priključci 4 (Tip A) Gen1, 1 (Tip A) Gen2
USB 2.0 priključci 2
RJ-45 (LAN) 1
Audio 5x 3.5mm
Unutrašnji priključci
Naponski priključci EATX 24pin, 1x EATX 8pin (EPS 12V)
USB 3.2 1 (podrška za 2 USB 3.2 Gen 1 porta)
USB 2.0 2 (podrška za 4 USB 2.0 porta)
Audio 1x Front panel audio
Ostali priključci 1 x Clear CMOS jumper, 4 x SATA 6Gb/s, 1 x SPI TPM header, 1 x Thunderbolt header(s), 1x COM Port Header, Thermal sensor konektor, 1x CPU Fan Connector, 1 x AIO_PUMP connector, 2 x M.2 slots, 2 x Aura RGB Strip Headers, 1x CPU OPT Fan Connector, 1x System Panel connector, 3x Chassis Fan connectors, 1 x Internal speaker connector(s), 1 x Addresable Gen 2 Header(s), 1 x S/PDIF Out header
Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu
Fizičke karakteristike
Format ATX
Dimenzije 305mm x 244mm
Pakovanje Full box retail
Reklamacioni period
Reklamacioni period 36 meseci
Deklaracija
EAN 4718017782340
Uvoznik
Zemlja porekla Kina
