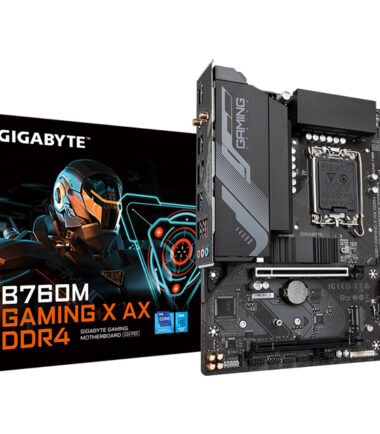

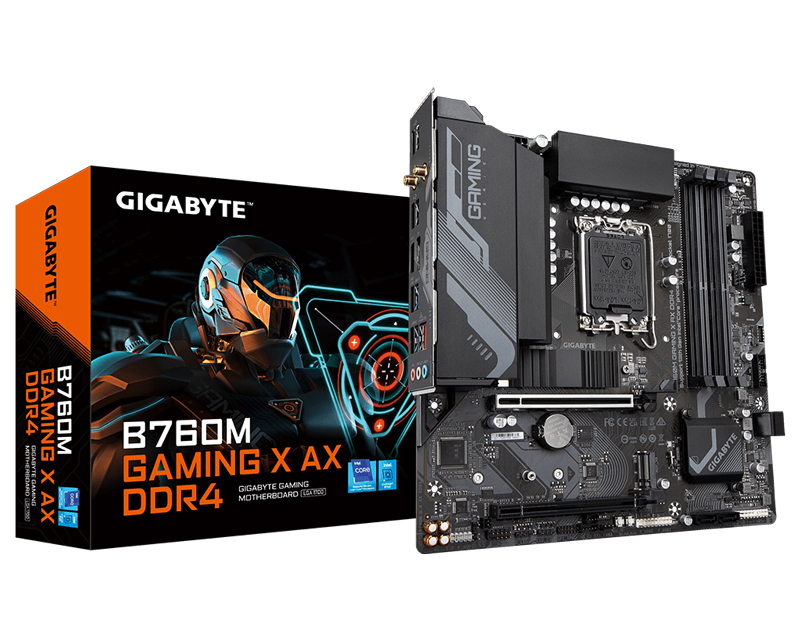

GIGABYTE B760M GAMING X AX rev. 1.x
47 people are viewing this product right now
211 $
Shipping calculated at checkout.
Estimated delivery:3 days
Guarantee Safe and Secure Payment Checkout
GIGABYTE B760M GAMING X AX rev. 1.x
Osnovne karakteristike
| Procesorsko ležište (socket) | Intel 1700 |
| Čipset | Intel B760 |
Memorija
| Tip memorije | DDR4 |
| Memorijski slotovi | 4x DDR4 |
| Podržane memorije | 3.200MT/s, 3.000MT/s, 2.933MT/s, 2.666MT/s, 2.400MT/s, 2.133MT/s, 5.333MT/s (O.C.), 5.133MT/s (O.C.), 5.000MT/s (O.C.), 4.933MT/s (O.C.), 4.800MT/s (O.C.), 4.700MT/s (O.C.), 4.600MT/s (O.C.), 4.500MT/s (O.C.), 4.400MT/s (O.C.), 4.300MT/s (O.C.), 4.266MT/s (O.C.), 4.133MT/s (O.C.), 4.000MT/s (O.C.), 3.866MT/s (O.C.), 3.800MT/s (O.C.), 3.733MT/s (O.C.), 3.666MT/s (O.C.), 3.600MT/s (O.C.), 3.466MT/s (O.C.), 3.400MT/s (O.C.), 3.333MT/s (O.C.), 3.300MT/s (O.C.) |
| Maksimalna ukupna memorija | 128GB |
| Ostale osobine | Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Dual Channel, Podrška za Unbuffered ECC memoriju |
Slotovi
| PCI Express x16 slot | 1x PCI Express 3.0 (x4 mode), 1x PCI Express 4.0 (x16 mode) |
| Ostali slotovi | 4x SATA 6.0Gb/s ports, 2x M.2 slot |
Skladišni interfejs
| SATA priključci (ukupno) | 4 |
| SATA priključci | 4x SATA 6GB/s |
| Ostali skladišni interfejs | 2 x M.2 (socket 3) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
Mreža
| Žična mreža (LAN) | 1x Realtek 2.5Gb Ethernet |
| Wi-Fi | Da |
| Bluetooth | Da |
| Bluetooth verzija | 5.3 |
Audio
| Broj kanala | 8 (7.1) |
| Model | Realtek |
| Napomena | High Definition |
Priključci na zadnjem panelu
| DisplayPort priključci | 1x DisplayPort |
| HDMI priključci | 1x HDMI 2.0 |
| Ukupno USB priključaka | 8 |
| USB 3.2 priključci | 3 (Tip A) Gen1 |
| USB 2.0 priključci | 5 |
| RJ-45 (LAN) | 1 |
| Audio | 3x 3.5mm |
| Ostali priključci | 2x SMA antenna connectors (2T2R) |
Unutrašnji priključci
| Naponski priključci | 1 x 24 pin ATX Power Connector, 1 x 8-pin ATX 12V power connector |
| USB 3.2 | 1 (Tip A) Gen1, 1 (podrška za 1 USB 3.2 Gen 2 Tip C porta) |
| USB 2.0 | 2 |
| Audio | 1x Front panel audio, 1x S/PDIF izlaz |
| Serijski port | 1 |
| Ostali priključci | 1 x front panel header, 1 x Clear CMOS jumper, 2 x addressable LED strip headers, 1 x Q-Flash Plus button, 2 x Thunderbolt add-in card connectors, 2 x RGB LED strip headers, 1 x reset jumper, 4 x SATA 6Gb/s, 1x TPM Header, 1 x CPU fan header, 3 x system fan headers, 1 x reset button, 2 x M.2 Socket 3 |
| Napomena | Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
Fizičke karakteristike
| Format | microATX |
| Dimenzije | 244mm x 244mm |
Reklamacioni period
| Reklamacioni period | 36 meseci |
Deklaracija
| EAN | 4719331853228 |
| Uvoznik | |
| Zemlja porekla | Kina |
